Capacitor (Electrolytic 10µF / 25V)
Passive Components
Part Number / SKU: Electrolytic Capacitor 10µF 25V
📋 Technical Specifications
Type: Electrolytic Capacitor
Capacitance: 10µF
Voltage Rating: 25V
Tolerance: ±20%
Polarity: Polarized (Positive & Negative)
Mounting: Through Hole
Temperature Range: -40°C to +105°C
🔹 Capacitor क्या है?
Capacitor एक electronic component है जो electrical charge (energy) को store करता है और जरूरत पड़ने पर release करता है।
🔹 Electrolytic Capacitor क्या होता है?
यह polarized capacitor होता है
इसमें + और – side होती है
ज्यादा capacitance के लिए use होता है

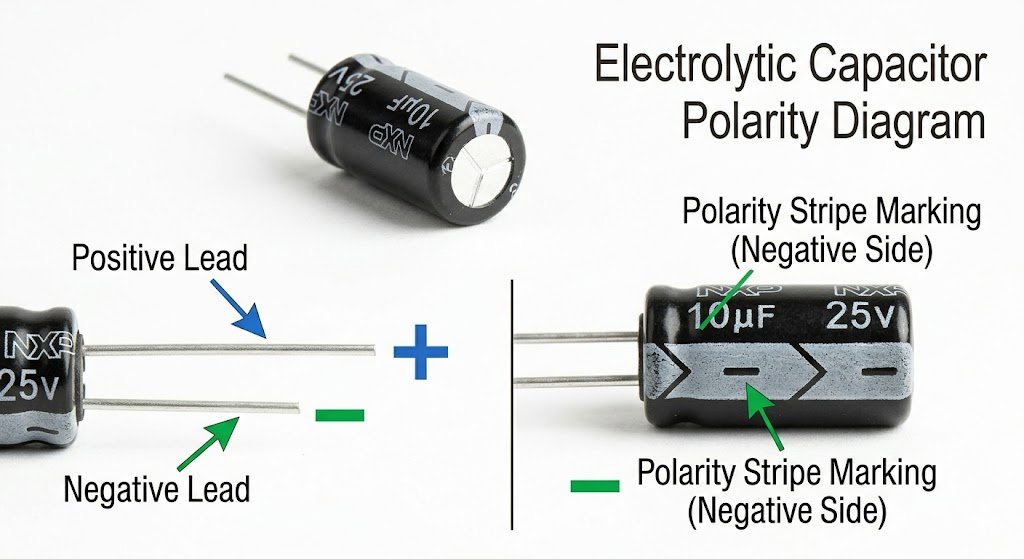

🔹 Polarity (बहुत जरूरी)
लंबी pin → Positive (+)
छोटी pin → Negative (–)
Body पर stripe → Negative side
👉 उल्टा जोड़ोगे → capacitor खराब या फट सकता है ⚠️
🔹 10µF / 25V का मतलब
10µF → कितनी charge store करेगा
25V → maximum voltage (इससे ज्यादा नहीं देना)
🔹 यह क्या काम करता है?
Power supply smooth करता है
Noise हटाता है
Timing circuits में delay बनाता है
🔹 कहाँ use होता है?
Power filtering
555 timer circuits
Audio circuits
Sensor circuits
Water level alarm
🔹 आसान उदाहरण
👉 555 timer में capacitor delay और blinking control करता है
🔹 Important Tips
हमेशा सही polarity लगाओ
Voltage rating से ज्यादा supply मत दो
Capacitor value project के हिसाब से चुनो
🔹 What is a Capacitor?
A capacitor is an electronic component that stores electrical energy and releases it when needed.
🔹 What is Electrolytic Capacitor?
It is a polarized capacitor
Has positive and negative terminals
Used for higher capacitance
🔹 Polarity
Long leg → Positive
Short leg → Negative
Stripe → Negative side
⚠️ Wrong connection can damage the capacitor
🔹 Meaning of 10µF / 25V
10µF → Capacitance (storage capacity)
25V → Maximum voltage limit
🔹 Functions
Smooth power supply
Filter noise
Provide delay in circuits
🔹 Applications
Power filtering
555 timer circuits
Audio circuits
DIY electronics
🔹 Tips
Always check polarity
Do not exceed voltage rating
Choose proper value
