Diode (1N4007 Rectifier Diode)
Diode (Passive / Semiconductor)
Part Number / SKU: 1N4007
📋 Technical Specifications
Type: Rectifier Diode
Model: 1N4007
Maximum Repetitive Reverse Voltage: 1000V
Forward Current: 1A
Forward Voltage Drop: ~0.7V
Package: DO-41
Mounting: Through Hole
Operating Temperature: -55°C to +150°C
🔹 Diode क्या है?
Diode एक ऐसा component है जो current को सिर्फ एक दिशा में flow होने देता है।
🔹 1N4007 क्या है?
यह एक rectifier diode है
AC को DC में बदलने (rectification) में use होता है
High voltage (1000V) तक handle कर सकता है
🔹 यह कैसे काम करता है?
Forward bias → current flow करता है
Reverse bias → current रोक देता है
👉 एक तरफ open, दूसरी तरफ block

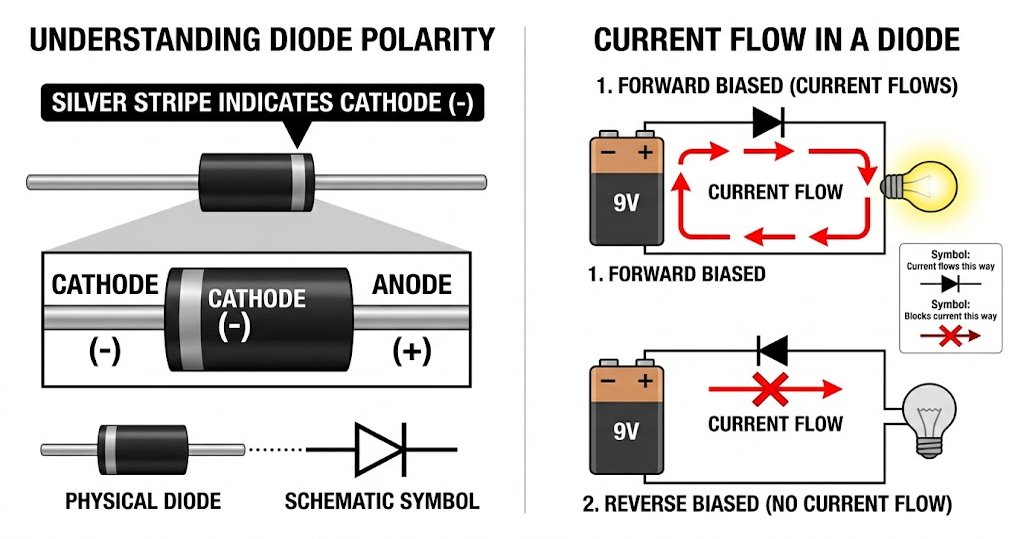

🔹 Polarity (बहुत जरूरी)
Stripe side → Cathode (–)
दूसरी side → Anode (+)
👉 stripe पहचानना जरूरी है
🔹 यह क्या काम करता है?
AC to DC conversion
Reverse current protection
Flyback protection (relay/motor)
🔹 कहाँ use होता है?
Power supply circuits
Adapter circuits
Relay protection
Battery protection
DIY electronics
🔹 Simple Example
👉 Relay coil के parallel diode लगाते हैं
👉 Back voltage से circuit बचता है
🔹 Important Tips
सही direction में लगाओ
High voltage के लिए suitable है
गलत polarity → काम नहीं करेगा
🔹 What is a Diode?
A diode allows current to flow in only one direction.
🔹 What is 1N4007?
A rectifier diode
Used for AC to DC conversion
Can handle up to 1000V
🔹 Working
Forward bias → conducts
Reverse bias → blocks current
🔹 Polarity
Stripe side → Cathode (–)
Other side → Anode (+)
🔹 Functions
Rectification
Reverse polarity protection
Flyback protection
🔹 Applications
Power supplies
Adapter circuits
Relay protection
Battery circuits
🔹 Tips
Always check polarity
Use in correct direction
Suitable for high voltage circuits
